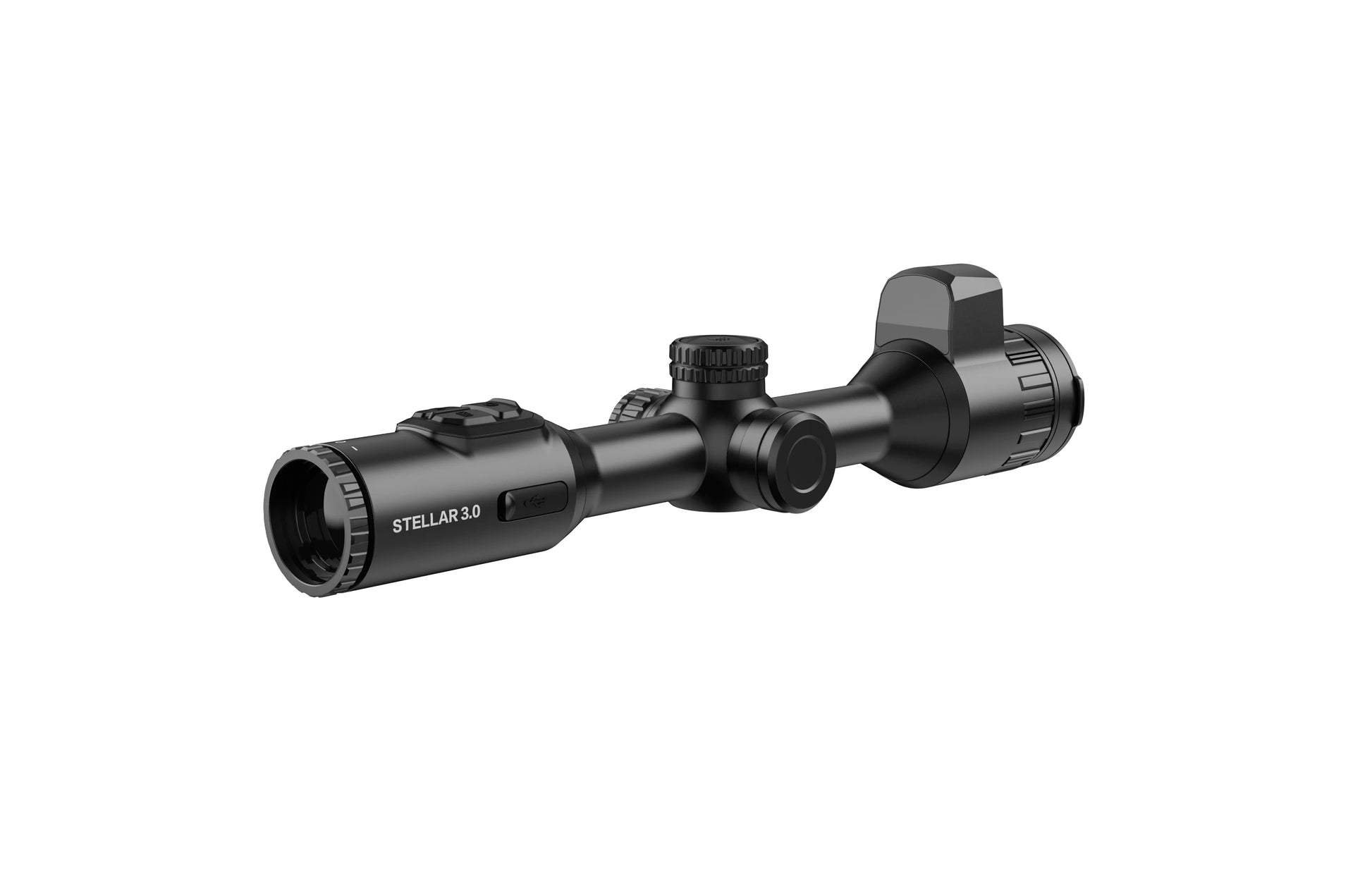

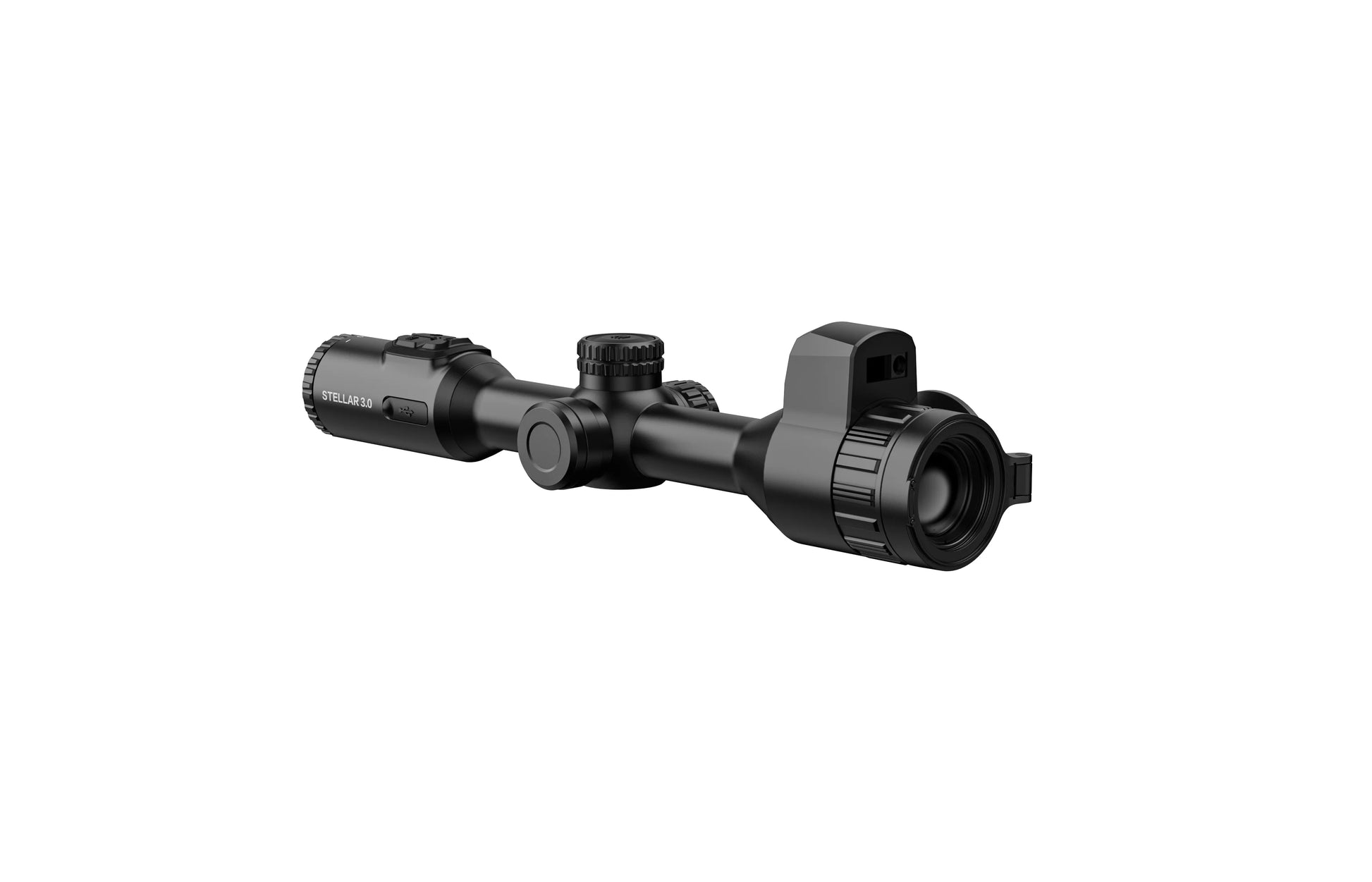

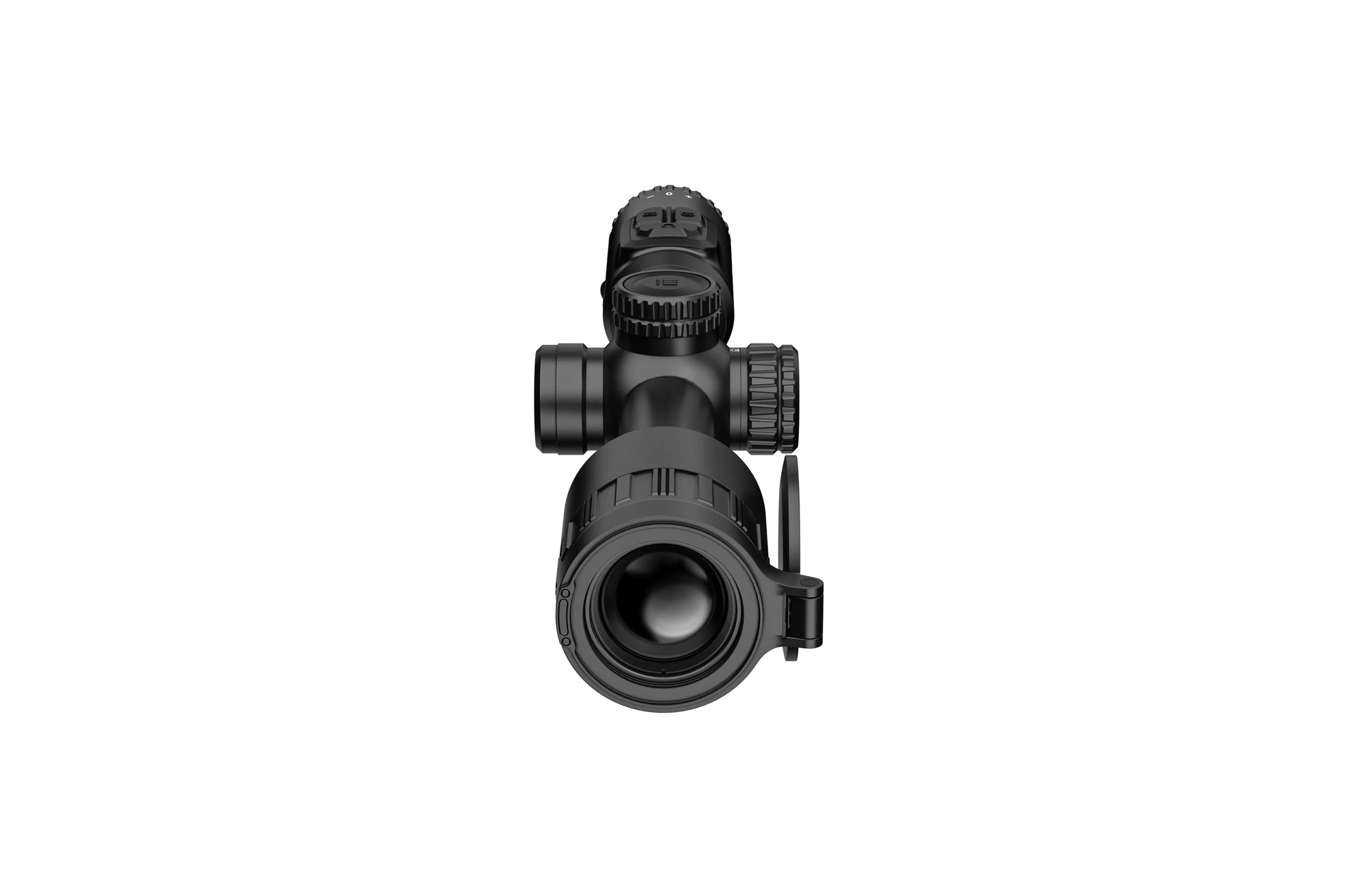

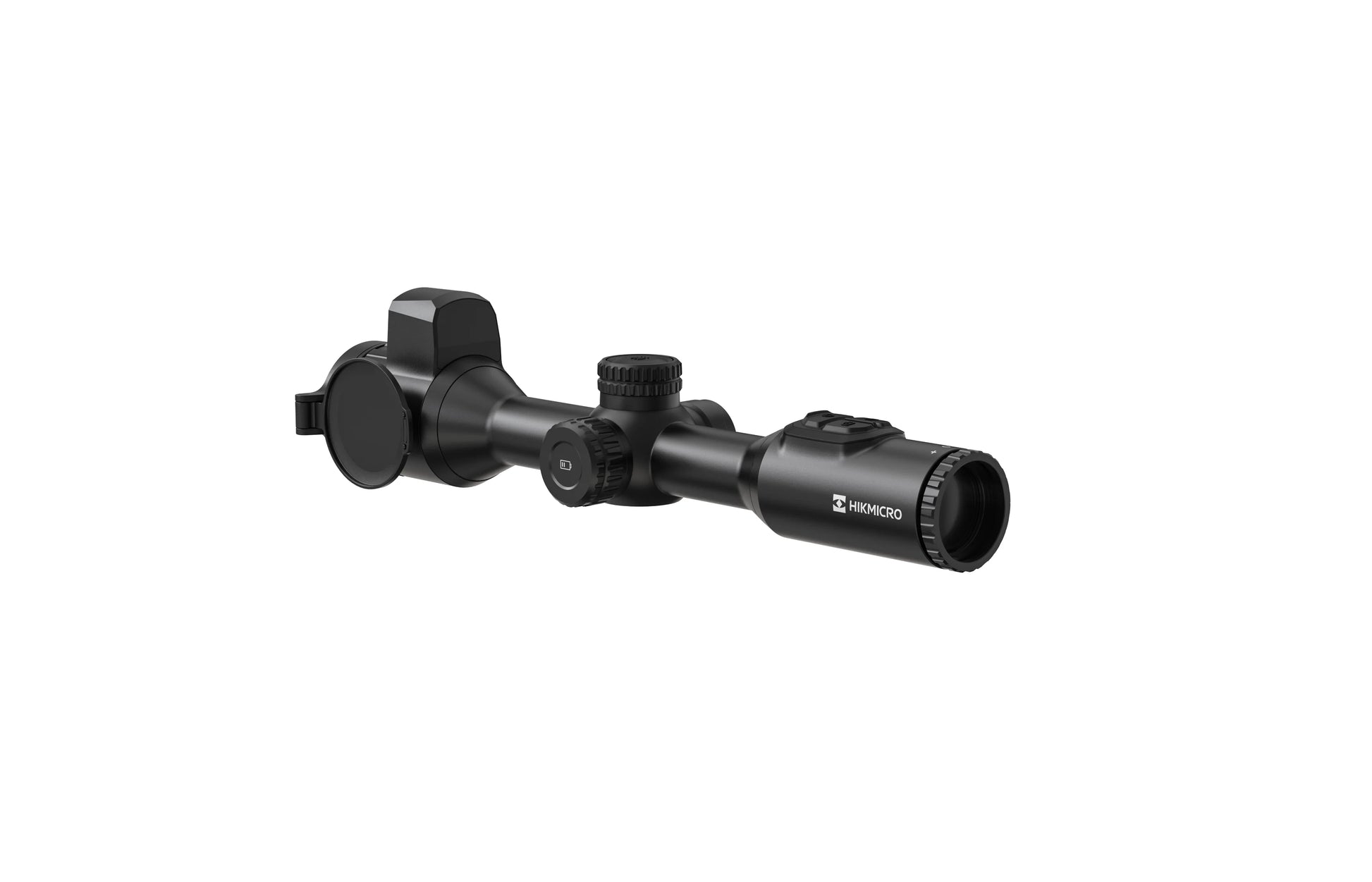

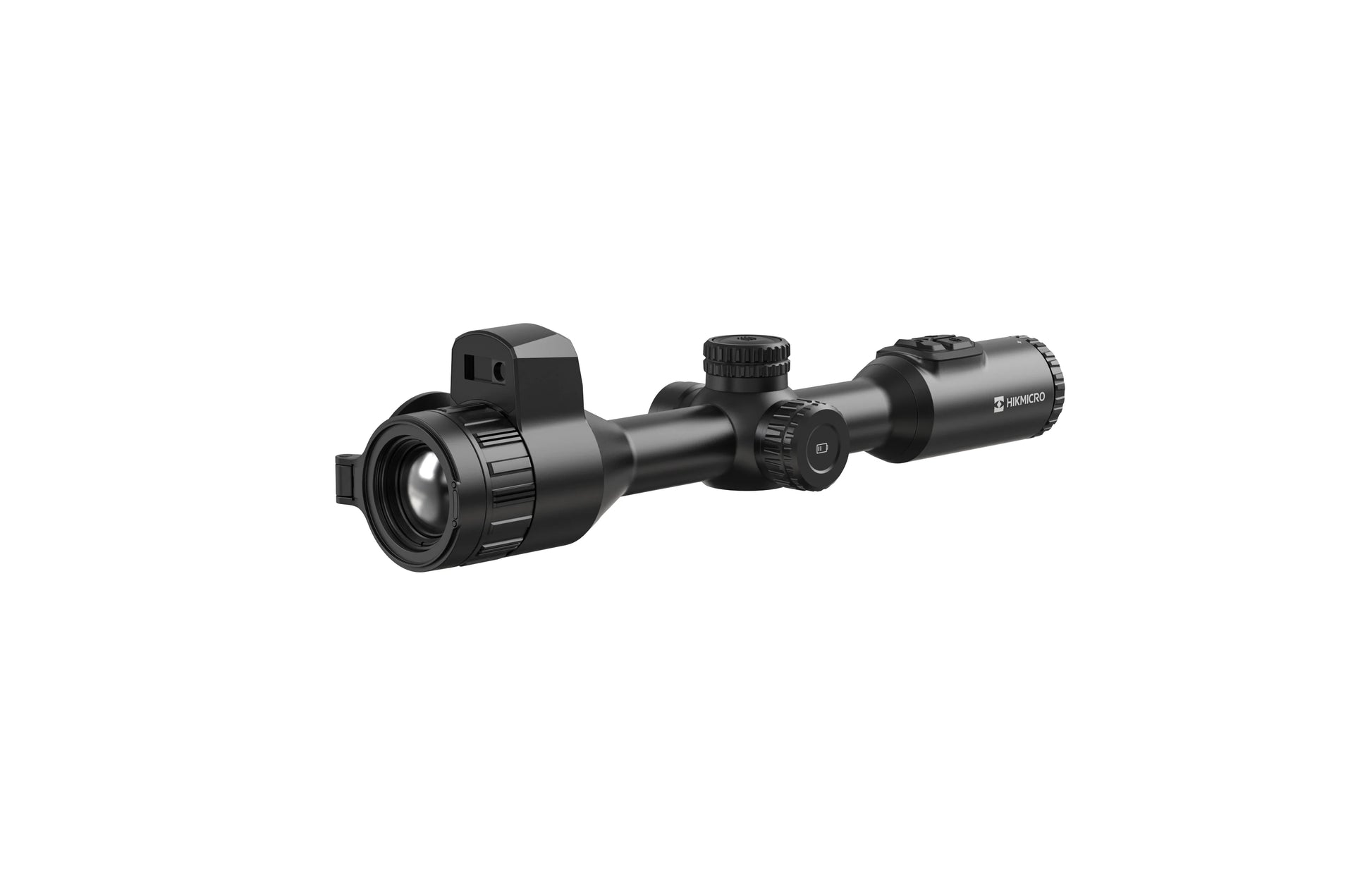

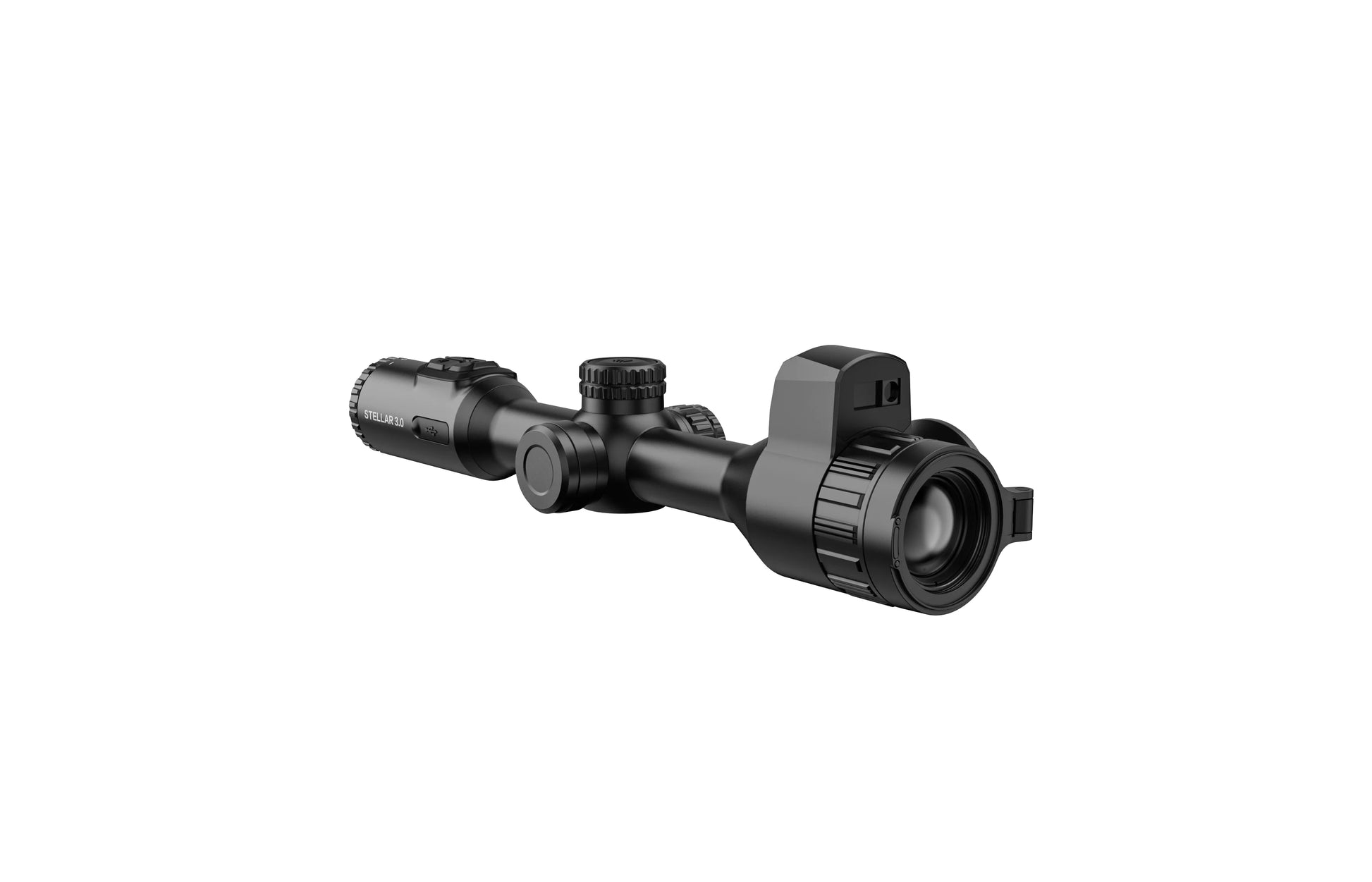

HIKMICRO | STELLAR 3.0 Thermal Scope LRF SH35L

HIKMICRO STELLAR SH35L 3.0 Thermal Scope is equipped with a 384 × 288 @12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless System (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03” OLED larger display, SH35L 3.0 makes it easier to spot targets quickly and accurately. The built- in 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.

Product Details
Key Features

• 384 × 288 Resolution @12 μm thermal detector
• High sensitivity Thermal Module NETD < 15 mK (@25°C, F# = 1.0)
• 35 mm, F1.0 lens with detection range up to 1800 m
• 2560 × 2560 Resolution 1.03-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Built-in laser rangefinder up to 1000 m, with ballistic calculation
• Rechargeable internal batteries and external battery, 9h continuous operation
• High shock resistance up to 1000 g/0.4 ms

Specification

• Laser Rangefinder
• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Max. Measuring Range: 1000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C, F# = 1.0)
• Lens (Focal Length): 35 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1800 m
• Min. Focusing Distance: 3 m
• Magnification: 4.2× to 24.2×, Support 1× step value of continuous zooming
• Field of View (H × V), Degrees / m @100 m: 7.5° × 5.7°/13.1 m × 10.0 m

Image Display

• Display: 2560 × 2560, 1.03-inch OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -4D to 4D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• Image Pro 2.0: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Audio Recording: Yes
• Recoil-Activation Recording: Yes
• Standby Mode: Yes
• Storage:  Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Zeroing Profiles: 5
• Max. Recoil 1000 g/0.4 ms
• Freeze Zeroing: Yes
• Local Album: Yes
• Ballistic Calculation: Yes

Power Supply

• Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
• Battery Operating Time: 9 hours continuous running (@25°C, Zoom Pro, LRF on)
• Type-C Power Supply: DC 5 V/2 A, USB Type-C interface, Supports QC3.0 * Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.

General

• Mounting Standard: 30 mm
• Protection Level: IP67
• Dimension: 410 mm × 85 mm × 86.3 mm
• Working Temperature: -30°C to 55°C (-22°F to 131°F)
• Weight: 830 g without external battery
• Center Height: 32 mm
